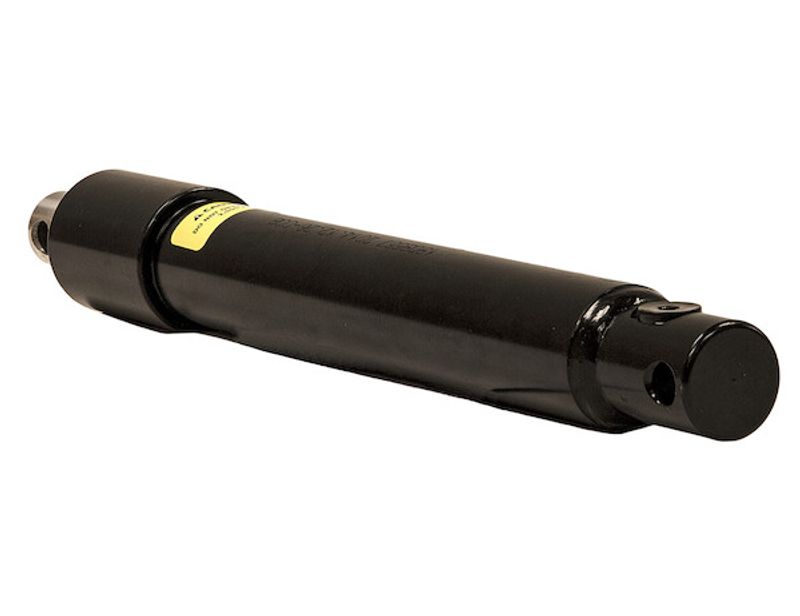

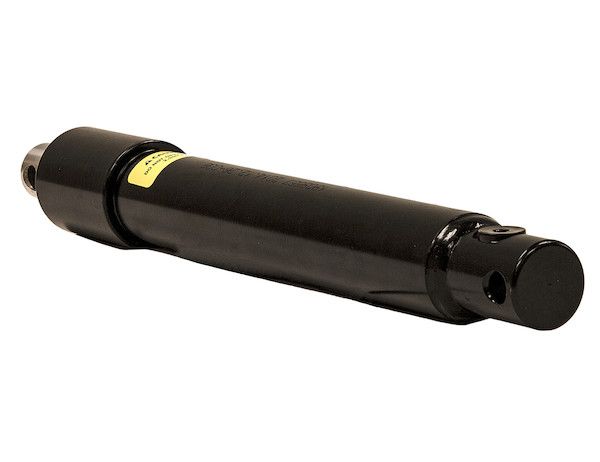

SAM 1-1/2 x 11-1/4 Inch Single Acting Angle Cylinder-Replaces Sno-Way #96107455
$138.05
Product Information
Description:
SAM Lift and Angle Cylinders to fit Sno-Way® Snow Plows
SAM Lift and Angle Cylinders to fit Sno-Way Snow Plows is similar to Sno-Way OEM: 96100085, 96101977, 96107455, and 96106077.
Is similar to Sno-Way OEM: 96100085, 96101977, 96107455, and 96106077.
Features:
- References to manufacturers or brands are for descriptive purposes only.
Technical Details
- Mfg #
- 1303557
- SKU
- 1303557
- UPC
- 724920101103
- NMFC #
- 119260
- Weight
- 12 lbs.
- Dimensions
- 19 × 3 × 3 inches
- Pin Size
- .500 inch
- Base Diameter/Thickness
- 1.500 inch
- Sno-Way®
- 96107455
- OEM Primary Part Number
- 96107455
- OEM Primary Brand
- Sno-Way®
- OEM Brand 2_1
- -
- OEM Part Number 2
- -
- OEM Brand 3_1
- -
- OEM Part Number 3
- -
- OEM Brand 4_1
- -
- OEM Brand 5_1
- -
- OEM Part Number 4
- -
- OEM Part Number 5
- -
- Port Location
- 90°
- Rod Diameter/Thickness
- 1.250 inch
- Center to Center Retracted
- 16.750 inch
- Center to Center Extended
- 28.000 inch
- Stroke
- 11.250 inch
- Acting
- Single
- Bore
- 1.500 inch
- Port Size
- 3/8 SAE ORB (-6)
