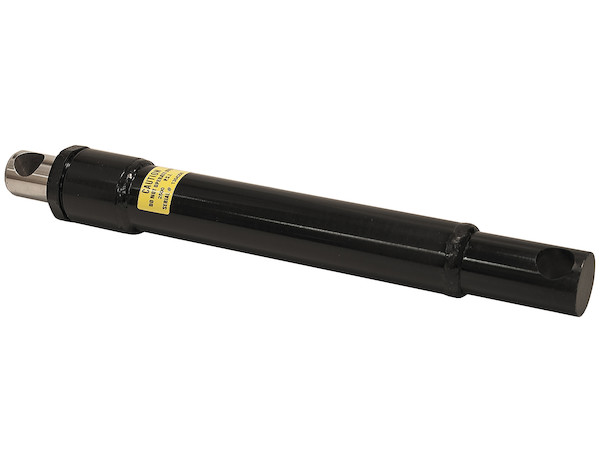

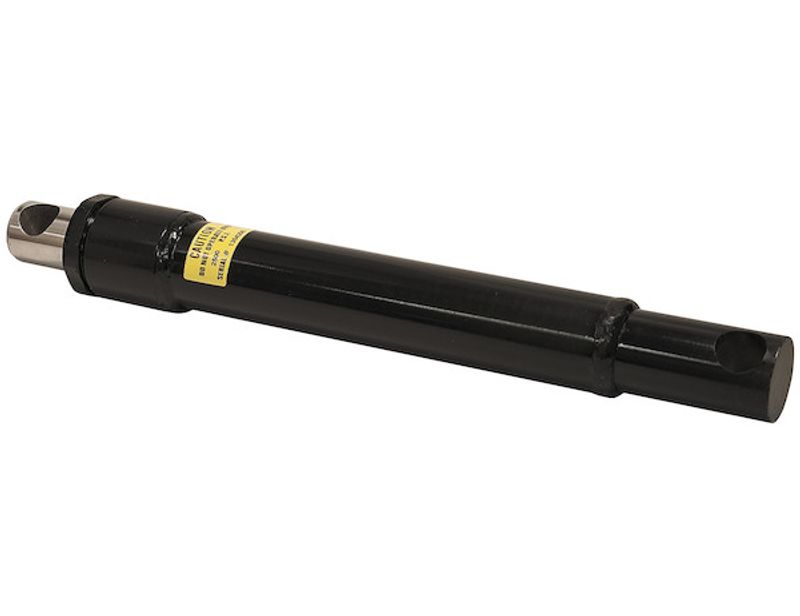

SAM 1-1/2 x 12 Inch Single Acting Lift Cylinder-Replaces Western #64148
$126.35
Product Information
Description:
SAM Angle and Lift Cylinders to fit Western® Snow Plows
SAM Angle and Lift Cylinders to fit Western Snow Plows are similar to Western OEM: 25209, 56538K, 56614, 64148, 56750, 56102, 56709W, 25200, 25210, and 25878.
Are similar to Western OEM: 25209, 56538K, 56614, 64148, 56750, 56102, 56709W, 25200, 25210, and 25878.
Features:
- References to manufacturers or brands are for descriptive purposes only.
Technical Details
- Mfg #
- 1304203
- SKU
- 1304203
- UPC
- 724920097635
- NMFC #
- 119260
- Weight
- 15 lbs.
- Dimensions
- 23 × 3 × 3 inches
- OEM Primary Brand
- Western®
- Western®
- 64148
- OEM Primary Part Number
- 64148
- OEM Brand 2_1
- -
- OEM Part Number 2
- -
- OEM Brand 3_1
- -
- OEM Brand 4_1
- -
- OEM Brand 5_1
- -
- OEM Part Number 3
- -
- OEM Part Number 5
- -
- OEM Part Number 4
- -
- Port Size
- 3/8 SAE ORB (-6)
- Stroke
- 12.000 inch
- Bore
- 1.500 inch
- Acting
- Single
- Center to Center Retracted
- 19.500 inch
- Rod Diameter/Thickness
- 1.500 inch
- Center to Center Extended
- 31.500 inch
- Base Diameter/Thickness
- 1.750 inch
- Pin Size
- 1.000 inch
- Port Location
- 90°
