Product Information
Description:

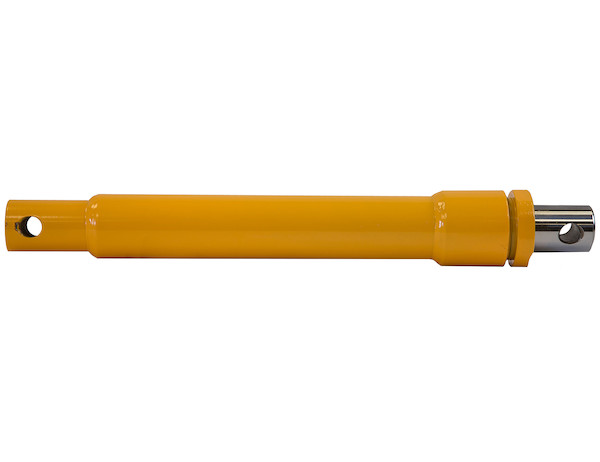

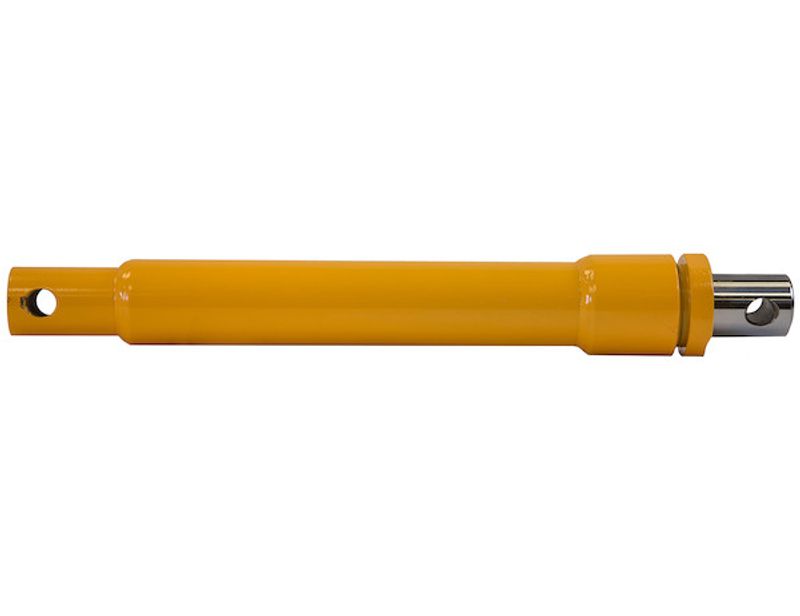

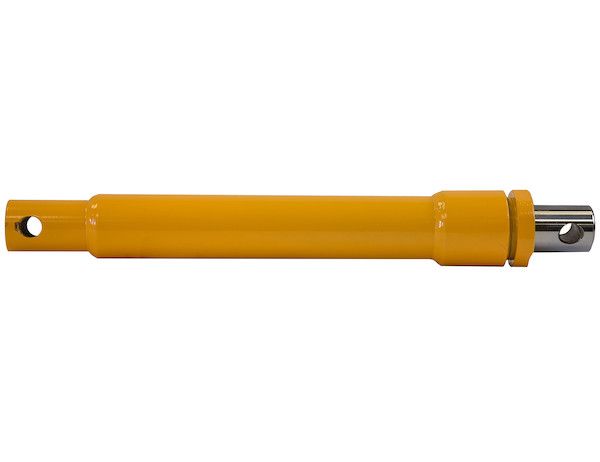

SAM Lift and Angle Cylinders to fit Meyer®/Diamond® Snow Plows
SAM Lift and Angle Cylinders to fit Meyer/Diamond Snow Plows are similar to Meyer/Diamond OEM: 05810, 07968, 05437, 05752 and 05984; Diamond OEM: 81700020.
Are similar to Meyer/Diamond OEM: 05810, 07968, 05437, 05752 and 05984; Diamond OEM: 81700020.
Features:
- References to manufacturers or brands are for descriptive purposes only.
Technical Details
- Mfg #
- 1304020
- SKU
- 1304020
- UPC
- 724920003513
- NMFC #
- 119260
- Weight
- 10 lbs.
- Dimensions
- 16 × 3 × 3 inches
- OEM Part Number 5
- -
- OEM Part Number 4
- -
- OEM Brand 5_1
- -
- OEM Part Number 3
- -
- OEM Brand 3_1
- -
- OEM Part Number 2
- -
- OEM Brand 4_1
- -
- OEM Brand 2_1
- -
- OEM Primary Part Number
- 05984
- OEM Primary Brand
- Meyer®
- Meyer®
- 05984
- Port Size
- 1/4 NPT
- Center to Center Extended
- 18.375 inch
- Port Location
- Inline
- Acting
- Single
- Base Diameter/Thickness
- 1.625 inch
- Pin Size
- .625 inch
- Rod Diameter/Thickness
- 1.125 inch
- Center to Center Retracted
- 12.375 inch
- Bore
- 1.500 inch
- Stroke
- 6.000 inch
