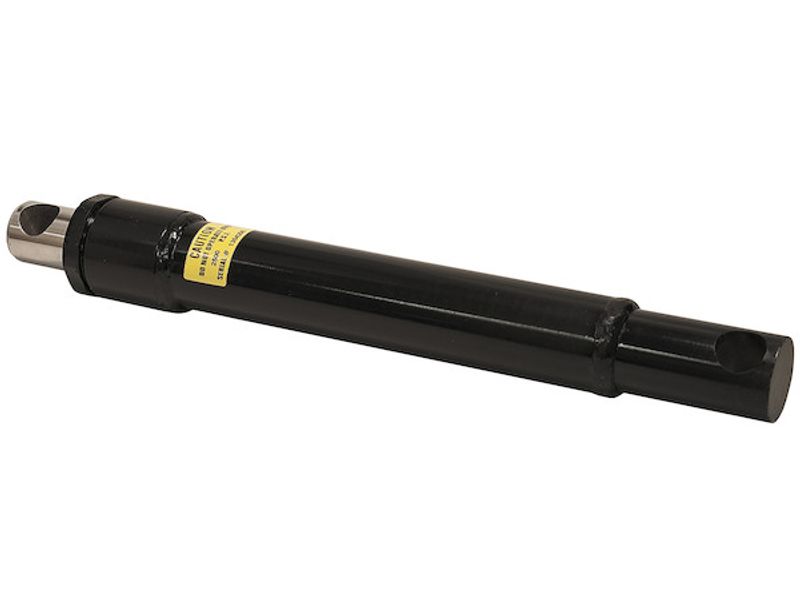

SAM 2-1/2 x 4-5/8 Inch Lift Cylinder-Replaces Blizzard #B60236
$194.92
Product Information
Description:
SAM Lift and Angle Cylinders to fit SnowEx®/Blizzard® Snow Plows
SAM Lift and Angle Cylinders to fit SnowEx/Blizzard Snow Plows are similar to SnowEx/Blizzard OEM: B60029, B60065, B60221, B60236, B60237, B60255, B60347, and B60207.
Are similar to SnowEx/Blizzard OEM: B60029, B60065, B60221, B60236, B60237, B60255, B60347, and B60207.
Features:
- References to manufacturers or brands are for descriptive purposes only.
Technical Details
- Mfg #
- 1304643
- SKU
- 1304643
- UPC
- 724920101141
- NMFC #
- 119260
- Weight
- 16 lbs.
- Dimensions
- 19 × 4 × 3 inches
- OEM Part Number 5
- -
- OEM Part Number 4
- -
- OEM Part Number 3
- -
- OEM Brand 5_1
- -
- OEM Brand 4_1
- -
- OEM Brand 3_1
- -
- OEM Part Number 2
- -
- OEM Brand 2_1
- -
- OEM Primary Part Number
- B60236
- OEM Primary Brand
- Blizzard®
- Blizzard®
- B60236
- Port Size
- 3/8 SAE ORB (-6)
- Bore
- 2.500 inch
- Acting
- Double
- Stroke
- 4.625 inch
- Center to Center Retracted
- 16.750 inch
- Center to Center Extended
- 21.375 inch
- Rod Diameter/Thickness
- 1.250 inch
- Base Diameter/Thickness
- 2.875 inch
- Pin Size
- .625 inch
- Port Location
- +/-45°
