Product Information
Description:

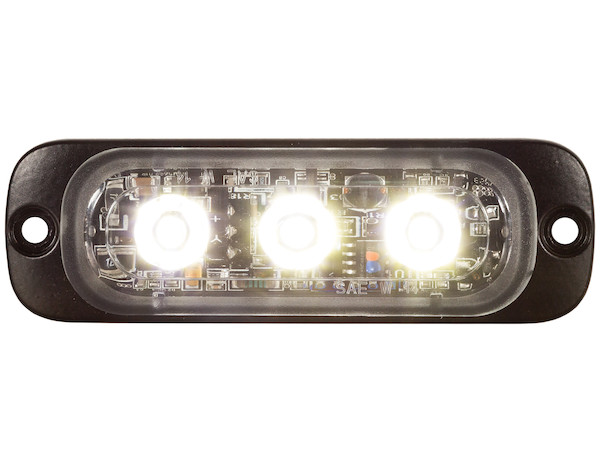

Thin 3.5 Inch Horizontal Strobe Light Series
Buyers Products Thin 3.5 Inch Horizontal Strobe Light Series features a slim .35 in. profile and 12 flash patterns with alternating and synchronous functions. It's rated SAE J595 Class 1 when mounted horizontally and is CA13 certified.

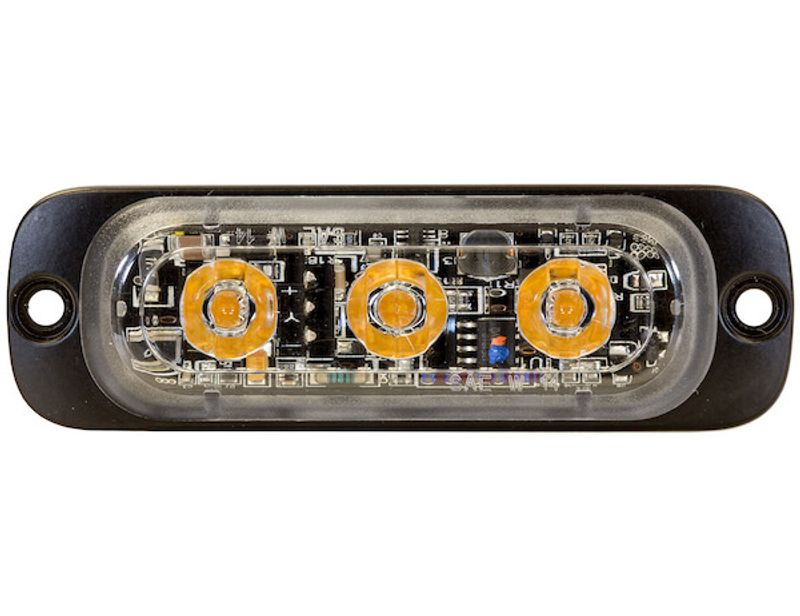

The durable strobe is IP67 rated for water and dust resistance and comes in your choice of amber, clear, or blue.

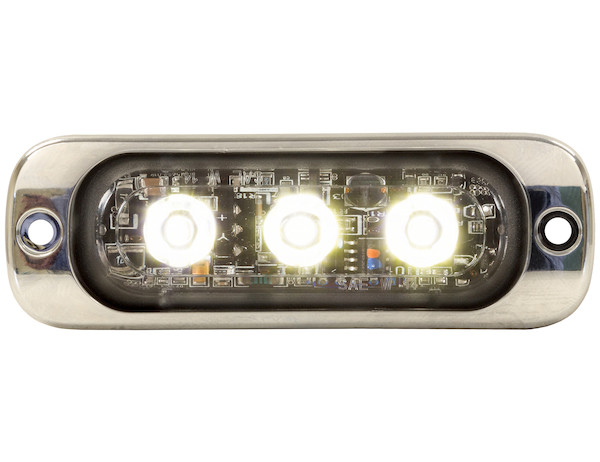

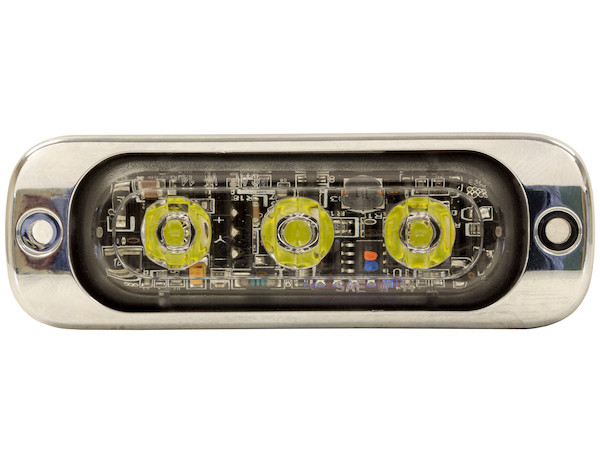

Bezels and mounting brackets are available separately. Lights are backed with a 5 year warranty.
Rated SAE J595 Class 1 and CA13 certified.
Features:
- Slim .35 in. profile and compact size fits small spaces.
- SAE J595 Class 1 rating when used in horizontal orientation.
- IP67 rated for water and dust resistance.
- CA13 certified.
- Backed with a 5 year warranty.
- Work Trucks
- Trailers
Technical Details
- Mfg #
- 8892301
- SKU
- 8892301
- UPC
- 724920146623
- NMFC #
- 17870SUB9
- Weight
- 1 lbs.
- Dimensions
- 4 × 2 × 2 inches
- Number of Flash Patterns
- 12
- Alternating Function (Y/N)
- Y
- Color
- Clear
- Hard Wired or Plug
- Hard Wired
- Certification
- SAE J595 Class 1, IPX8, CA13
- Connector
- Blunt Cut
- Color
- Clear
- Grommet/Base Included
- Y
- Synchronous Function
- Y
- Class Level
- 1
- Height
- 1.100 inch
- Lens Shape
- Rectangular
- Lead Length
- 9.5 inch
- Voltage
- 12-24 vdc
- Type of Plug
- Blunt Cut
- Amp draw at 12 Volts
- 0.24 amps
- Number of Wires
- 4
- Base / Mount Type
- Surface
- Housing Material
- Aluminum
- Overall Width
- 3.375 inch
- Mount Type
- Surface
