Product Information
Description:

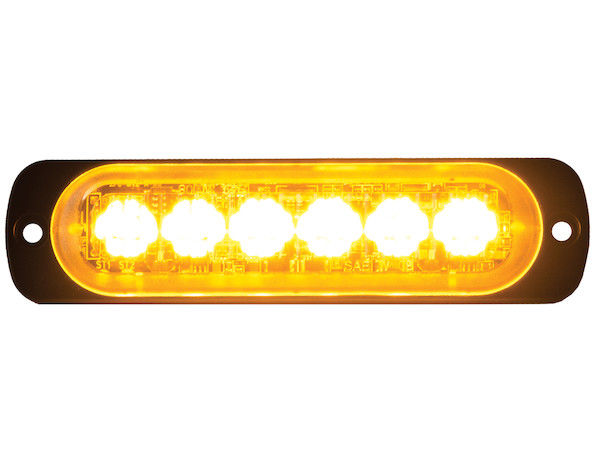

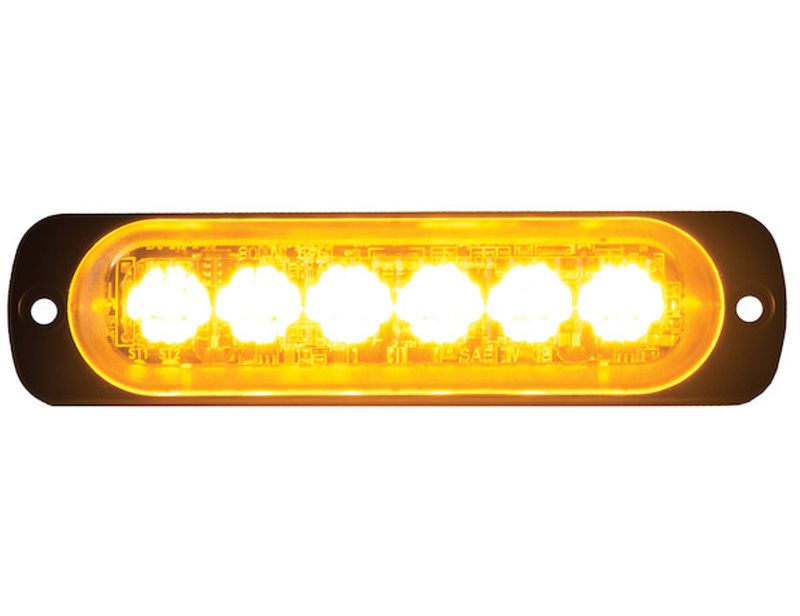

Thin 4.5 Inch Horizontal LED Strobe Light Series
Buyers Products Thin 4.5 Inch Horizontal LED Strobe Light Series is designed with a thin .35 in. profile to fit tight areas. The 12-24V strobe light has six LEDs and features 19 flash patterns with alternating and synchronous features.
Lights are rated IP67 for water and dust resistance and are available in several colors. The solid colors have a SAE J595 Class 1 rating for brightness (if mounted horizontally) and CA13 certification. Bezels and 90° mounting brackets are sold separately.
Lights are backed with a 5 year warranty.
Solid colors rated SAE J595 Class I when mounted horizontally.
Features:
- Rated IP67 for water and dust resistance.
- Low profile and compact size fits in small spaces.
- Backed with a 5 year warranty.
- Work Trucks
- Trailers
Technical Details
- Mfg #
- 8891900
- SKU
- 8891900
- UPC
- 724920122764
- NMFC #
- 17870SUB9
- Weight
- 1 lbs.
- Dimensions
- 8 × 2 × 1 inches
- Connector
- Blunt Cut
- Color
- Amber
- Certification
- SAE J595 Class 1, IP67
- Lens Shape
- Rectangular
- Hard Wired or Plug
- Hard Wired
- Lead Length
- 9.50 inch
- Type of Plug
- Blunt Cut
- Mount Type
- Surface
- Height
- 1.100 inch
- Voltage
- 12-24 vdc
- Amp draw at 12 Volts
- 1 amps
- Class Level
- 1
- Synchronous Function
- Y
- Grommet/Base Included
- Y
- Color
- Amber
- Alternating Function (Y/N)
- Y
- Number of Flash Patterns
- 19
- Number of Wires
- 4
- Base / Mount Type
- Surface
- Housing Material
- Aluminum
- Overall Width
- 4.400 inch
