Product Information
Description:

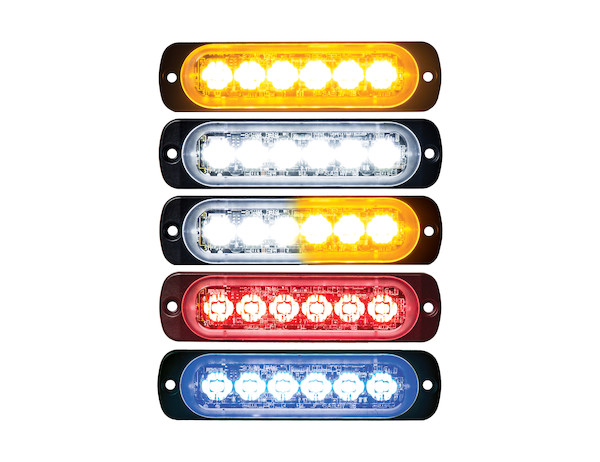

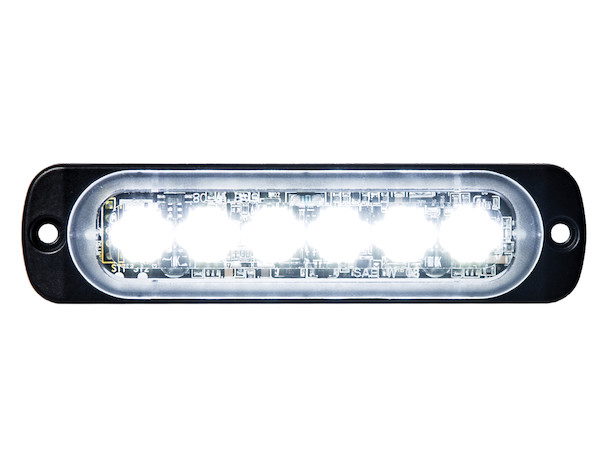

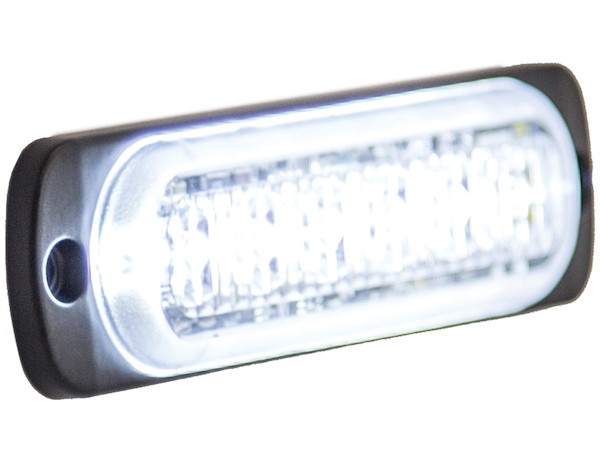

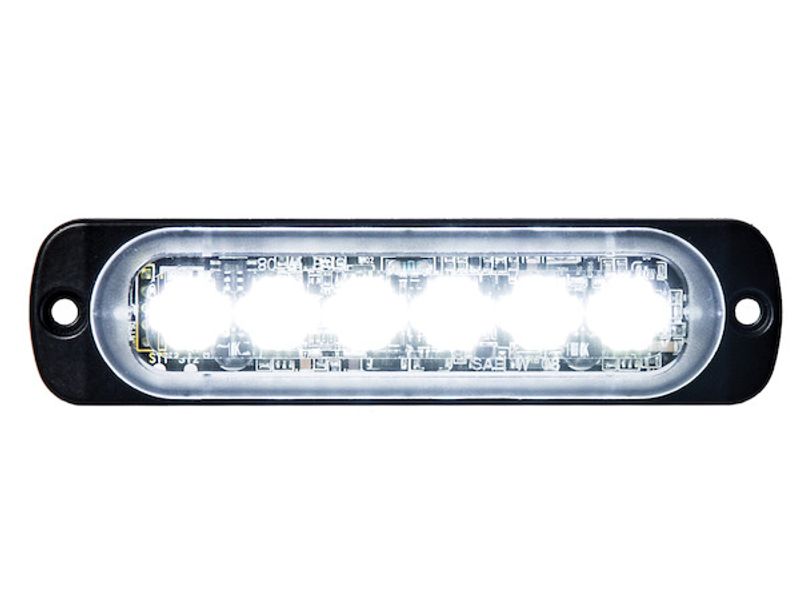

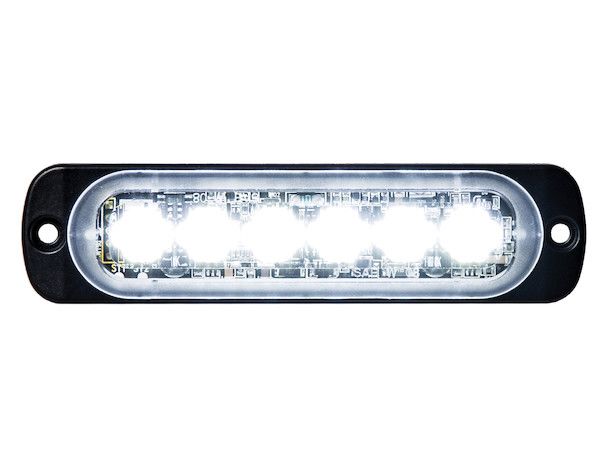

Thin 4.5 Inch Horizontal LED Strobe Light Series
Buyers Products Thin 4.5 Inch Horizontal LED Strobe Light Series is designed with a thin .35 in. profile to fit tight areas. The 12-24V strobe light has six LEDs and features 19 flash patterns with alternating and synchronous features.
Lights are rated IP67 for water and dust resistance and are available in several colors. The solid colors have a SAE J595 Class 1 rating for brightness (if mounted horizontally) and CA13 certification. Bezels and 90° mounting brackets are sold separately.
Lights are backed with a 5 year warranty.
Solid colors rated SAE J595 Class I when mounted horizontally.
Features:
- Rated IP67 for water and dust resistance.
- Low profile and compact size fits in small spaces.
- Backed with a 5 year warranty.
- Work Trucks
- Trailers
Technical Details
- Mfg #
- 8891901
- SKU
- 8891901
- UPC
- 724920122771
- NMFC #
- 17870SUB9
- Weight
- 1 lbs.
- Dimensions
- 5 × 2 × 2 inches
- Lens Shape
- Rectangular
- Certification
- SAE J595 Class 1, IP67
- Color
- Clear

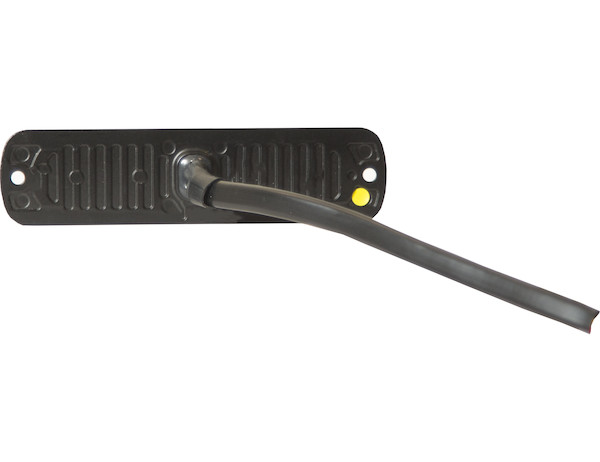

- Connector
- Blunt Cut
- Mount Type
- Surface
- Height
- 1.100 inch
- Overall Width
- 4.400 inch
- Base / Mount Type
- Surface
- Housing Material
- Aluminum
- Type of Plug
- Blunt Cut
- Number of Wires
- 4
- Amp draw at 12 Volts
- 1 amps
- Voltage
- 12-24 vdc
- Lead Length
- 9.5 inch
- Hard Wired or Plug
- Hard Wired
- Class Level
- 1
- Synchronous Function
- Y
- Grommet/Base Included
- Y
- Alternating Function (Y/N)
- Yes
- Number of Flash Patterns
- 19
- Color
- Clear
