Product Information
Description:

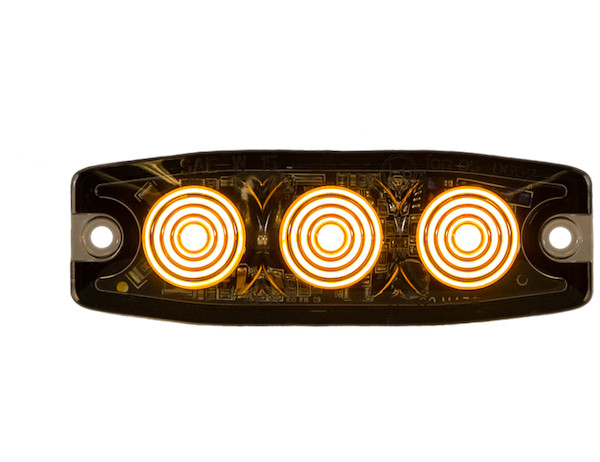

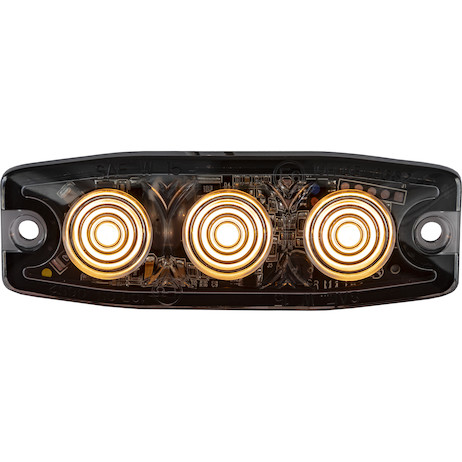

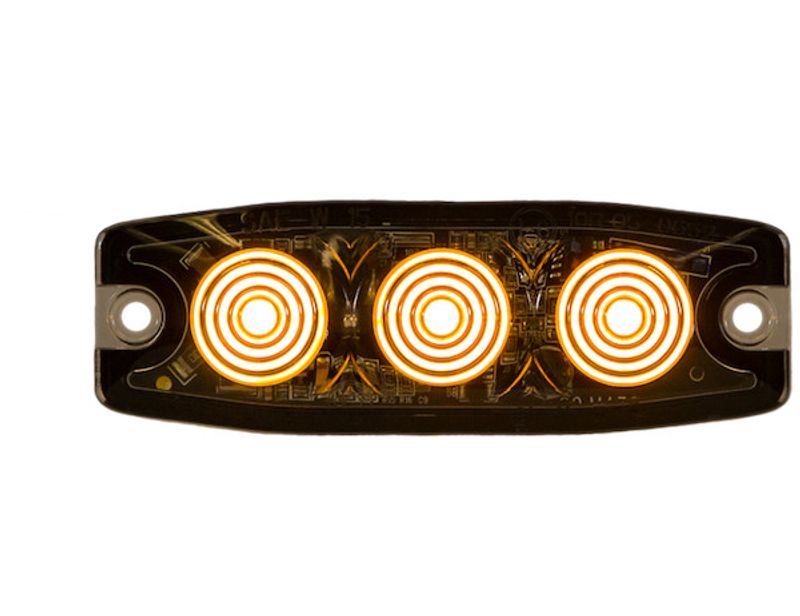

Ultra Thin 3.5 Inch LED Strobe Light Series
Buyers Products Ultra Thin 3.5 Inch LED Strobe Light Series is designed with an extremely slim .26 in. profile. The lights are rated SAE J595 Class 1 and CA13 certified. They feature 12 flash patterns with synchronous and alternating functions.
The surface mounted lights are available in several colors. They can be fastened with screws or the included 3M™ self-adhesive tape.
Built to withstand the toughest conditions, the lights feature an IPX8 waterproof rating.
90° mounting brackets are sold separately. Lights are backed with a 5 year warranty.
Rated SAE J595 Class I and CA13 certified.
Features:
- Ultra-thin .26 in. profile mounts into tight spaces.
- Rated IPX8 waterproof.
- Lights include 3M™ self-adhesive tape for simple fastening.
- Backed with a 5 year warranty.
- Trucks
- Trailers
- Service Body Trucks
Technical Details
- Mfg #
- 8892230
- SKU
- 8892230
- UPC
- 724920151153
- NMFC #
- 17870SUB5
- Weight
- 1 lbs.
- Dimensions
- 4 × 2 × 2 inches
- Voltage
- 12-24 vdc
- Amp draw at 12 Volts
- 0.50 amps
- Lead Length
- 9.5 inch
- Hard Wired or Plug
- Hard Wired
- Type of Plug
- Blunt Cut
- Number of Wires
- 4
- Overall Width
- 3.450 inch
- Housing Material
- Aluminum
- Base / Mount Type
- Surface
- Height
- 1.180 inch
- Mount Type
- Surface
- Color
- Amber
- Alternating Function (Y/N)
- Y
- Number of Flash Patterns
- 12
- Synchronous Function
- Y
- Grommet/Base Included
- Y
- Class Level
- 1
- Screw Material and Size
- Stainless Steel; 3.5mm Diameter; 20mm Length
- Certification
- SAE J595 Class 1,IPX8
- Lens Shape
- Rectangular
- Connector
- Blunt Cut
