Product Information
Description:

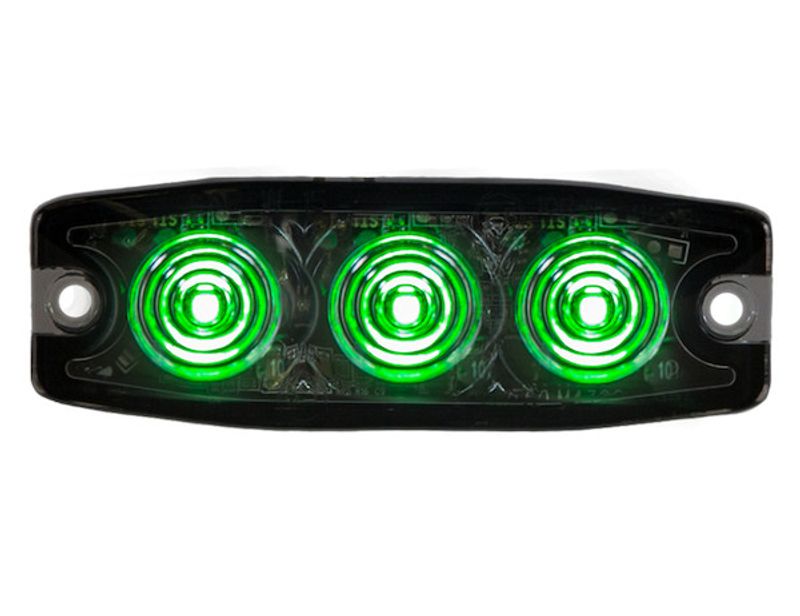

Ultra Thin 3.5 Inch LED Strobe Light Series
Buyers Products Ultra Thin 3.5 Inch LED Strobe Light Series is designed with an extremely slim .26 in. profile. The lights are rated SAE J595 Class 1 and CA13 certified. They feature 12 flash patterns with synchronous and alternating functions.
The surface mounted lights are available in several colors. They can be fastened with screws or the included 3M™ self-adhesive tape.
Built to withstand the toughest conditions, the lights feature an IPX8 waterproof rating.
90° mounting brackets are sold separately. Lights are backed with a 5 year warranty.
Rated SAE J595 Class I and CA13 certified.
Features:
- Ultra-thin .26 in. profile mounts into tight spaces.
- Rated IPX8 waterproof.
- Lights include 3M™ self-adhesive tape for simple fastening.
- Backed with a 5 year warranty.
- Trucks
- Trailers
- Service Body Trucks
Technical Details
- Mfg #
- 8892239
- SKU
- 8892239
- UPC
- 724920151191
- NMFC #
- 17870SUB5
- Dimensions
- 3 × 1 × 1 inches
- Color
- Green
- Number of Flash Patterns
- 16
- Alternating Function (Y/N)
- Y
- Synchronous Function
- Y
- Class Level
- 1
- Grommet/Base Included
- Y
- Color
- Green
- Connector
- Blunt Cut
- Certification
- SAE J595 Class 1
- Hard Wired or Plug
- Hard Wired
- Lens Shape
- Rectangular
- Lead Length
- 9.5 inch
- Wattage
- 10.55 watts
- Voltage
- 12-24 vdc
- Amp draw at 12 Volts
- 0.50 amps
- Type of Plug
- Blunt Cut
- Number of Wires
- 4
- Housing Material
- Aluminum
- Base / Mount Type
- Surface
- Overall Width
- 3.450 inch
- Height
- 1.180 inch
- Mount Type
- Surface
