Product Information
Description:

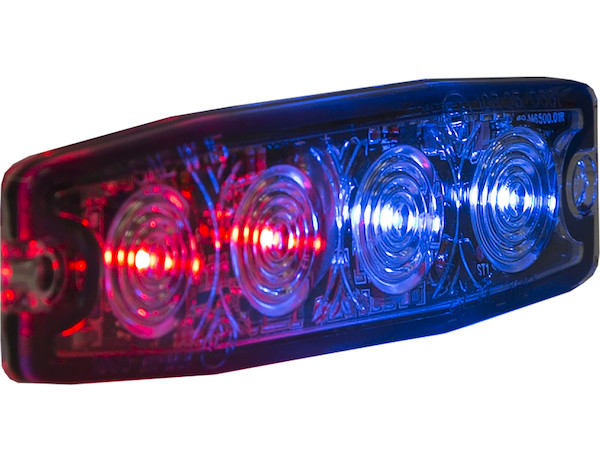

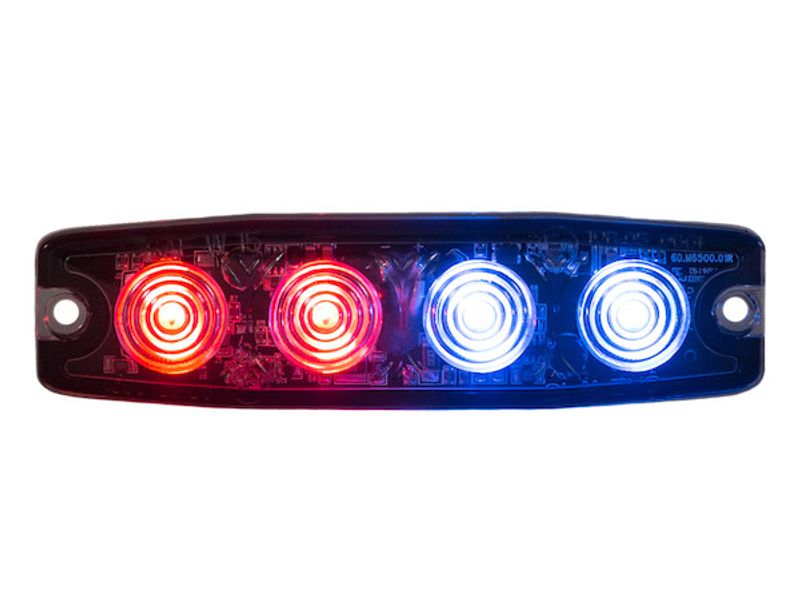

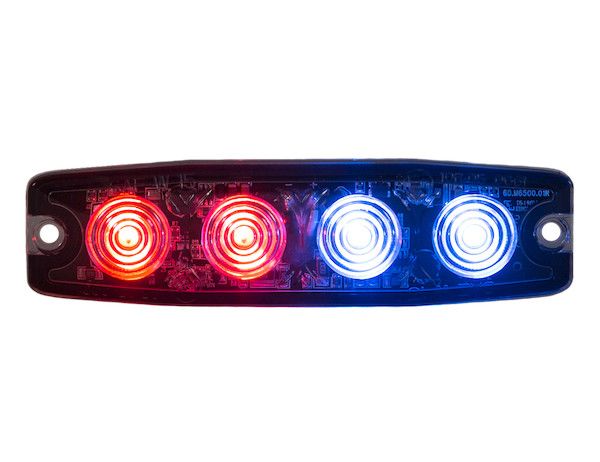

Ultra Thin 4.5 Inch LED Strobe Light Series

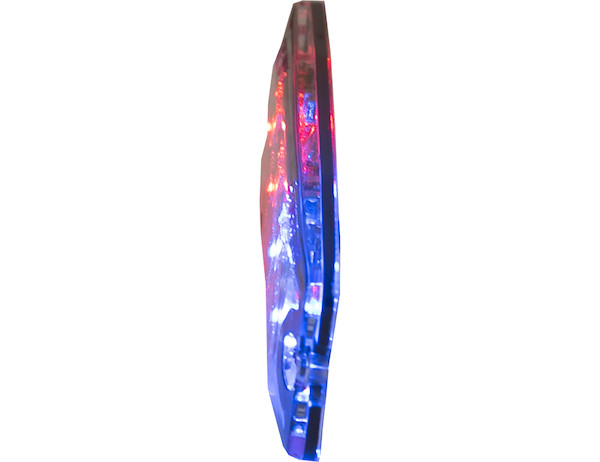

Buyers Products Ultra Thin 4.5 Inch LED Strobe Light Series is designed with a slim .26 in. profile to accommodate tight spaces. The 12-24V strobe lights feature 23 flash patterns with synchronous and alternating functions.
The lights are available in various color combinations and are CA13 certified. Solid color variants are rated SAE J595 Class 1.
Build to withstand the toughest conditions, the lights are rated IPX8 waterproof. 3M™ self-adhesive tape is included for simple fastening. An optional 90° mounting bracket is sold separately for a more permanent installation.
Lights are backed with a five year warranty.
Solid colors rated SAE J595 Class 1 and CA13 certified. Features 23 flash patterns with alternating and synchronous functions.
Features:
- Ultra-thin .26 in. profile mounts into tight spaces.
- IPX8 waterproof rated.
- Lights include 3M™ self-adhesive tape for simple fastening.
- Backed with a 5 year warranty.
- Work Trucks
- Trailers
- Service Body Trucks
Technical Details
- Mfg #
- 8892245
- SKU
- 8892245
- UPC
- 724920151726
- NMFC #
- 17870SUB5
- Weight
- 1 lbs.
- Dimensions
- 5 × 1 × 1 inches
- Mount Type
- Surface
- Height
- 1.180 inch
- Overall Width
- 4.380 inch
- Base / Mount Type
- Surface
- Housing Material
- Aluminum
- Number of Wires
- 4
- Type of Plug
- Blunt Cut
- Amp draw at 12 Volts
- 0.65 amps
- Lead Length
- 9.5 inch
- Voltage
- 12-24 vdc
- Lens Shape
- Rectangular
- Certification
- SAE J595 Class 1, IPX8, CA13
- Connector
- Blunt Cut
- Color
- Red/Blue
- Hard Wired or Plug
- Hard Wired
- Color
- Red/Blue
- Number of Flash Patterns
- 23
- Alternating Function (Y/N)
- Y
- Grommet/Base Included
- Y
- Synchronous Function
- Y
- Class Level
- 1
