Product Information
Description:

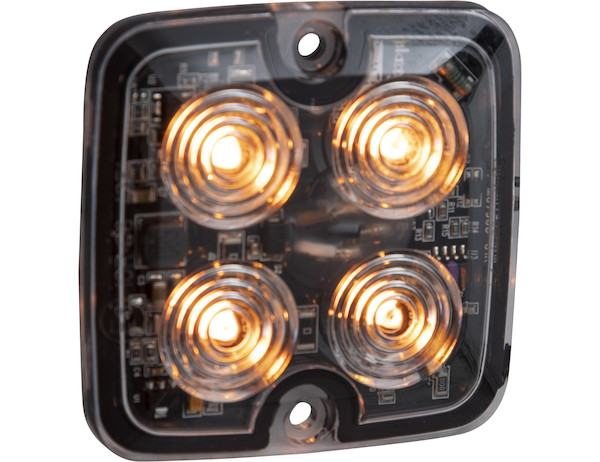

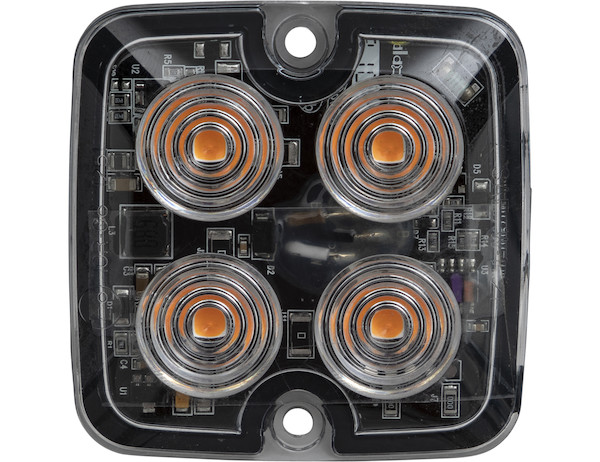

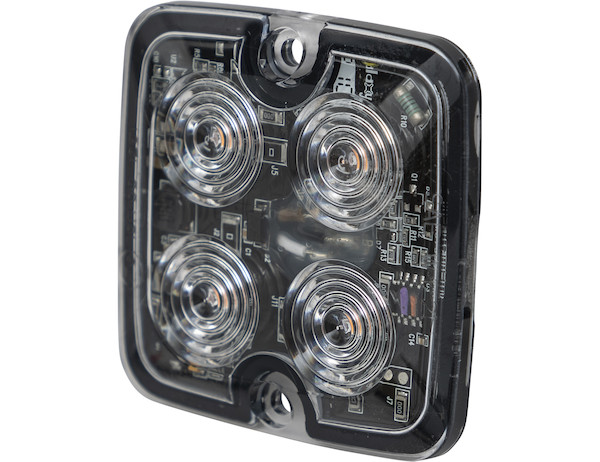

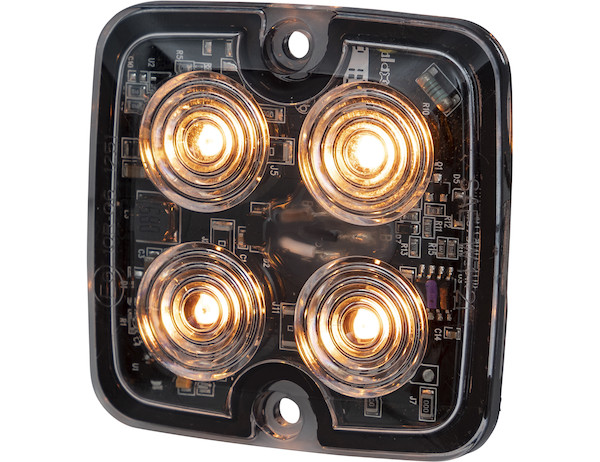

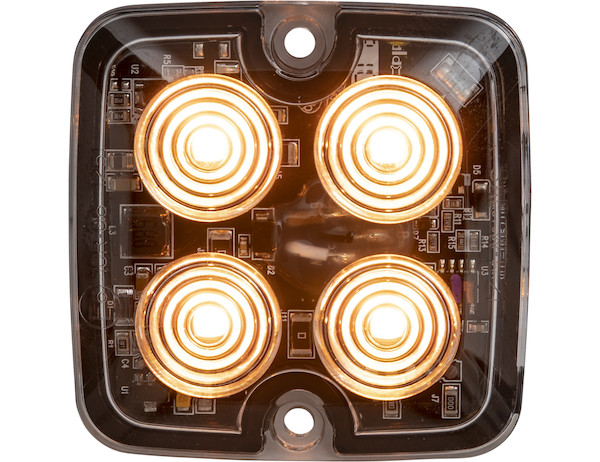

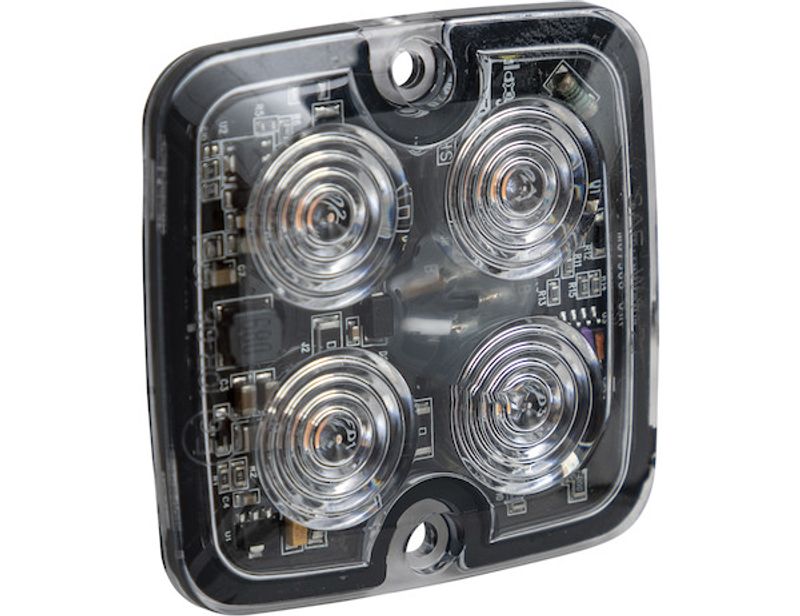

Ultra Thin Square 2 Inch LED Strobe Light Series

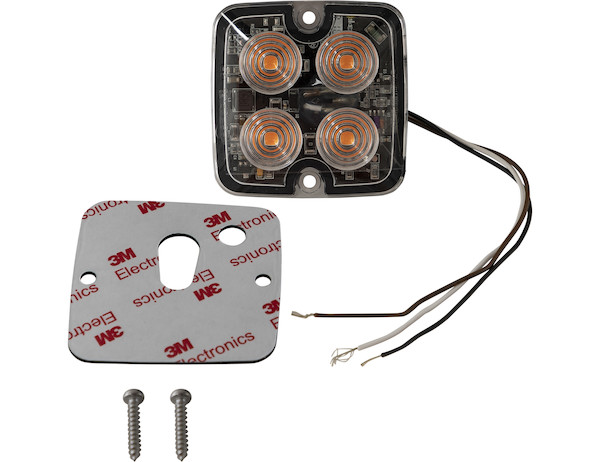

Buyers Products Ultra Thin Square 2 Inch LED Strobe Light Series features a low profile design to fit a range of applications. The lights feature 18 different flash patterns and synchronous or alternating functions when linked with additional units. Whichever flash pattern you select will be remembered the next time you turn the lights on. The lights are rated SAE J595 Class 1 for visibility and IPX7 waterproof. They also feature a vibration resistant polycarbonate lens designed to handle the rigors of the road. The corrosion-resistant aluminum base efficiently dissipates heat to protect vital components. The lights are surface mounted. All required mounting hardware is included. Lights are backed with a five year warranty.
Rated SAE J595 Class I and IPX7 waterproof with 18 flash patterns.
Features:
- Rated SAE J595 Class 1.
- Rated IPX7 waterproof.
- Ultra thin design (only .26 in. thick) to fit a variety of applications.
- 4 bright LEDs
- 18 different flash patterns with synchronous and alternating functionality.
- Backed with a 5 year warranty.
- Tow Trucks
- Service Trucks
- Plow Trucks
Technical Details
- Mfg #
- 8892140
- SKU
- 8892140
- UPC
- 724920225502
- NMFC #
- 17870SUB5
- Dimensions
- 3 × 3 × 1 inches
- Color
- Amber
- Synchronous Function
- Yes
- Alternating Function (Y/N)
- Yes
- Number of Flash Patterns
- 18
- Lens Shape
- Rectangular
- Lens Material
- Polycarbonate
- Hard Wired or Plug
- Hard Wired
- Certification
- SAE J595 Class 1
- Lead Length
- 10 inch
- Voltage
- 12-24 vdc
- Amp draw at 12 Volts
- 0.45 amps
- Type of Plug
- Blunt Cut
- Number of Wires
- 3
- Housing Material
- Aluminum
- Base / Mount Type
- Surface
- IP Rating
- X7

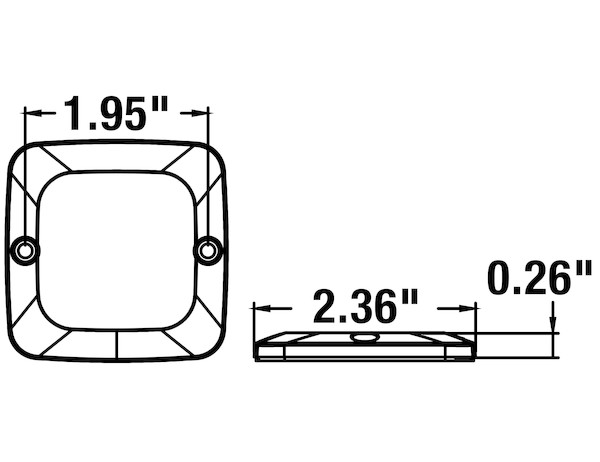

- Overall Width
- 2.36 inch
- Mount Type
- Surface
- Depth
- 0.26 inch
- SAE Classification
- J595 Class 1
- California Title 13
- True
