Product Information
Description:

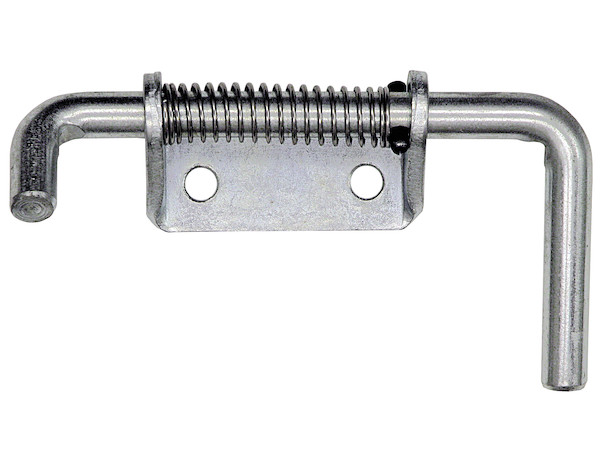

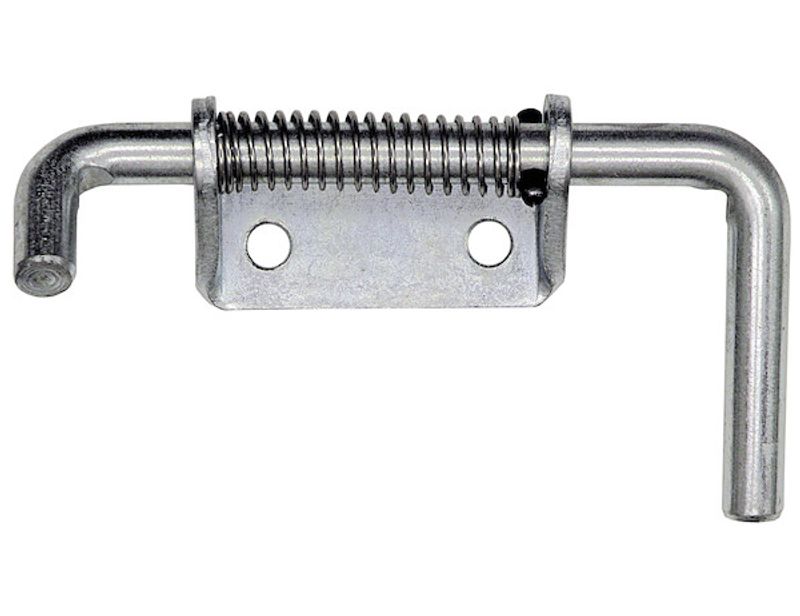

Quick Release Spring Latch
Buyers Products Stake Body Spring Latch is designed for fast installation and reliable fastening for many applications. The spring-loaded handle is constructed from durable zinc-plated steel (bolt and housing) and stainless steel (spring) for years of use without weathering.
The bolt-on latch is available in either right- or left-hand operation options. An optional 90° keeper is also available for extra security.
Is designed for fast installation and reliable fastening for many applications.
Features:
- Spring-loaded handle for more secure latching and strength.
- The zinc-plated bolt and housing with stainless steel spring provides durability and corrosion resistance.
- Ideal for many applications where you need an easy engage and disengage product that connects two panels, such as doors, chutes, or gates.
- Latch is designed for easy and precise bolt-on installation.
- Trailer Doors
- Trailer Gates
- Chutes
- Stake Bodies
Technical Details
- Mfg #
- B2590RH
- SKU
- B2590RH
- UPC
- 724920093897
- NMFC #
- 94100
- Weight
- 1 lbs.
- Dimensions
- 6 × 2 × 3 inches
- Keeper (y/n)
- No
- Mount Type
- Bolt-On
- Handle Length
- 2.75 inch
- Housing Width (in.)
- 2.66 inch
- Housing Length (in.)
- 6.09 inch
- Bolt Dia. (in.)
- 0.50 inch
- Desc.
- Right Hand
- Latch Style
- Spring Latch
- Bolt Length (in.)
- 4.69 inch
- Bolt Material
- Carbon Steel
- Housing Material
- Carbon Steel
- Bolt Finish
- Zinc Plated
- Housing Finish
- Zinc Plated
- Handle Material
- Carbon Steel
- Handle Finish
- Zinc Plated
