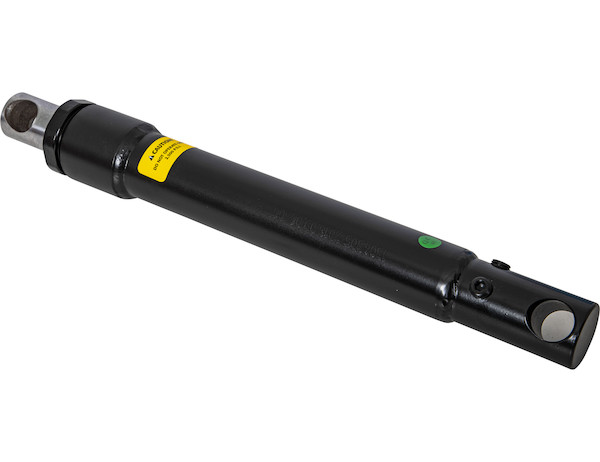

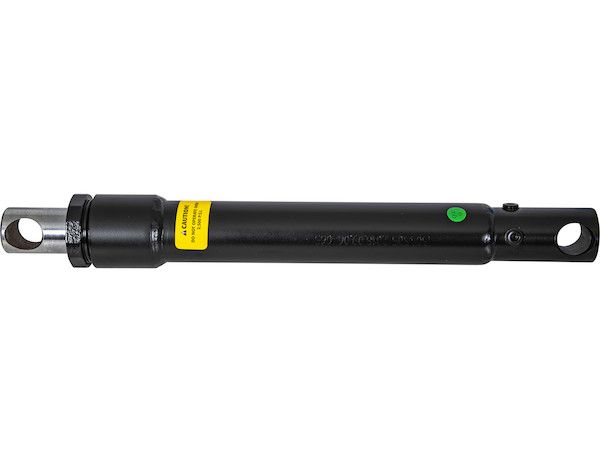

SAM 1-1/2 x 10 Inch Power Lift Cylinder-Replaces Fisher #20116K
$108.84
Product Information
Description:
SAM Lift and Angle Cylinders to fit Fisher® Snow Plows
SAM Lift and Angle Cylinders to fit Fisher Snow Plows are similar to Fisher OEM: 20117K, 20116K, A5166K, 56709F, 56718, 56603K.
Are similar to Fisher OEM: 20117K, 20116K, A5166K, 56709F, 56718, 56603K.
Features:
- References to manufacturers or brands are for descriptive purposes only.
Technical Details
- Mfg #
- 1304305
- SKU
- 1304305
- UPC
- 724920020619
- NMFC #
- 119260
- Weight
- 14 lbs.
- Dimensions
- 20 × 3 × 3 inches
- OEM Primary Part Number
- A318
- Fisher®
- A318
- Port Size
- 1/4 NPT
- Bore
- 1.500 inch
- Center to Center Retracted
- 17.250 inch
- Stroke
- 10.000 inch
- Rod Diameter/Thickness
- 1.500 inch
- Pin Size
- 1.000 inch
- Acting
- Single
- Center to Center Extended
- 27.250 inch
- Base Diameter/Thickness
- 1.750 inch
- Port Location
- 90° and Inline
- OEM Primary Brand
- Fisher®
- OEM Brand 2_1
- -
- OEM Part Number 2
- -
- OEM Brand 4_1
- -
- OEM Brand 3_1
- -
- OEM Part Number 3
- -
- OEM Part Number 5
- -
- OEM Brand 5_1
- -
- OEM Part Number 4
- -
