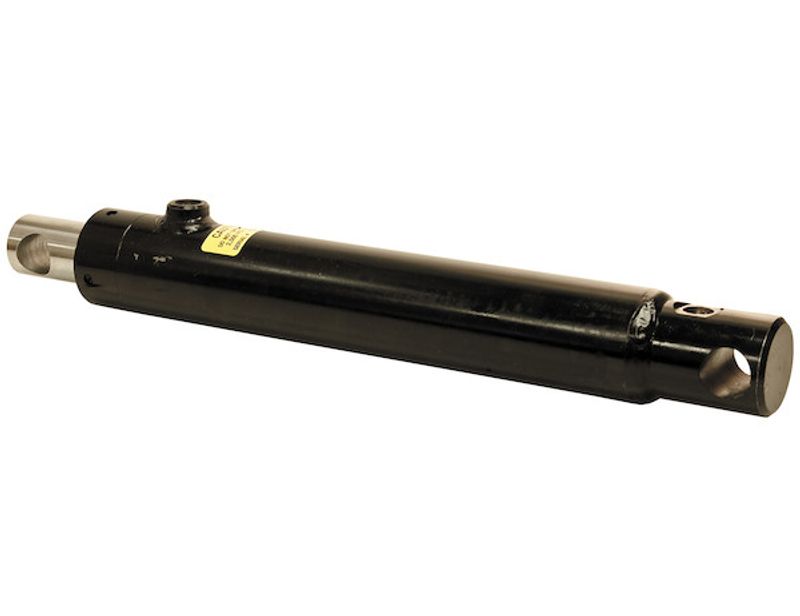

SAM 2 x 10 Inch Power Double Acting Angling Cylinder-Replaces OEM #56709
$220.16
Product Information
Description:
SAM Lift and Angle Cylinders to fit Fisher® Snow Plows
SAM Lift and Angle Cylinders to fit Fisher Snow Plows are similar to Fisher OEM: 20117K, 20116K, A5166K, 56709F, 56718, 56603K.
Are similar to Fisher OEM: 20117K, 20116K, A5166K, 56709F, 56718, 56603K.
Features:
- References to manufacturers or brands are for descriptive purposes only.
Technical Details
- Mfg #
- 1304217
- SKU
- 1304217
- UPC
- 724920086769
- NMFC #
- 119260
- Weight
- 15 lbs.
- Dimensions
- 21 × 4 × 3 inches
- Fisher®
- 56709F
- Port Size
- 3/8 SAE ORB (-6)
- Bore
- 2.000 inch
- Stroke
- 10.000 inch
- Center to Center Extended
- 27.312 inch
- Acting
- Double
- Center to Center Retracted
- 17.312 inch
- Rod Diameter/Thickness
- 1.500 inch
- Pin Size
- 1.000 inch
- Base Diameter/Thickness
- 2.000 inch
- Port Location
- 90°
- OEM Part Number 5
- -
- OEM Part Number 4
- -
- OEM Brand 4_1
- -
- OEM Brand 5_1
- -
- OEM Brand 3_1
- Western®
- OEM Brand 2_1
- Western®
- OEM Primary Part Number
- 56709F
- OEM Primary Brand
- Fisher®
- Western®
- 56709W;W5670
